Automatic Glass Loading And Unloading Table
Contact Us
ladglass@ladglass.com
+86 0757-27726738
Classification
Keywords
Product Description
Glass loading machine and glass unloading machine are important sections in the highly-automatic production line for mass production. These machines can efficiently reduce labor costs and improve productivity.
Our glass loading and unloading machine is generally linked with glass double edging machine and glass washing and drying machine. During operation, they are able to pick up and place down the glass sheets safely and stably.
Specifications
|
Glass Loading Machine Model |
YD-LT-3360 | YD-LT-2442 | YD-LT-2536 | YD-LT-2030 |
| Max. Glass Size (mm) | 3300×6000 | 2400×4200 | 2500×3600 | 2000×3000 |
| Min. Glass Size (mm) | 800×1000 | 700×800 | 600×700 | 500×600 |
| Glass Thickness (mm) | 3~19 | 3~19 | 3~19 | 3~19 |
| Number of loading arms | 7 | 7 | 7 | 5 |
| Number of suction cups on each loading arm | 4 | 4 | 3 | 3 |
| Power (kw) | 7.5 | 7.5 | 7.5 | 7.5 |
| Working Speed (m/min) | 3~6 pieces/min | 3~6 pieces/min | 3~6 pieces/min | 3~6 pieces/min |
| Outer Dimension (mm) | 6000×3500x900 | 4200×2600×900 | 3600×2700×900 | 3000*2200*900 |
| We can customize the size according to your request. | ||||
|
Glass Unloading Machine Model |
YD-UT-3360 | YD-UT-2442 | YD-UT-2536 | YD-UT-2030 |
| Max. Glass Size (mm) | 3300×6000 | 2400×4200 | 2500×3600 | 2000×3000 |
| Min. Glass Size (mm) | 800×1000 | 700×800 | 600×700 | 500×600 |
| Glass Thickness (mm) | 3~19 | 3~19 | 3~19 | 3~19 |
| Number of loading arms | 7 | 7 | 7 | 5 |
| Number of suction cups on each loading arm | 4 | 4 | 3 | 3 |
| Power (kw) | 7.5 | 7.5 | 7.5 | 7.5 |
| Working Speed (m/min) | 3~6 pieces/min | 3~6 pieces/min | 3~6 pieces/min | 3~6 pieces/min |
| Outer Dimension (mm) | 12000×3500x900 | 8400×2600×900 | 7200×2700×900 | 6000*2200*900 |
| We can customize the size according to your request. | ||||

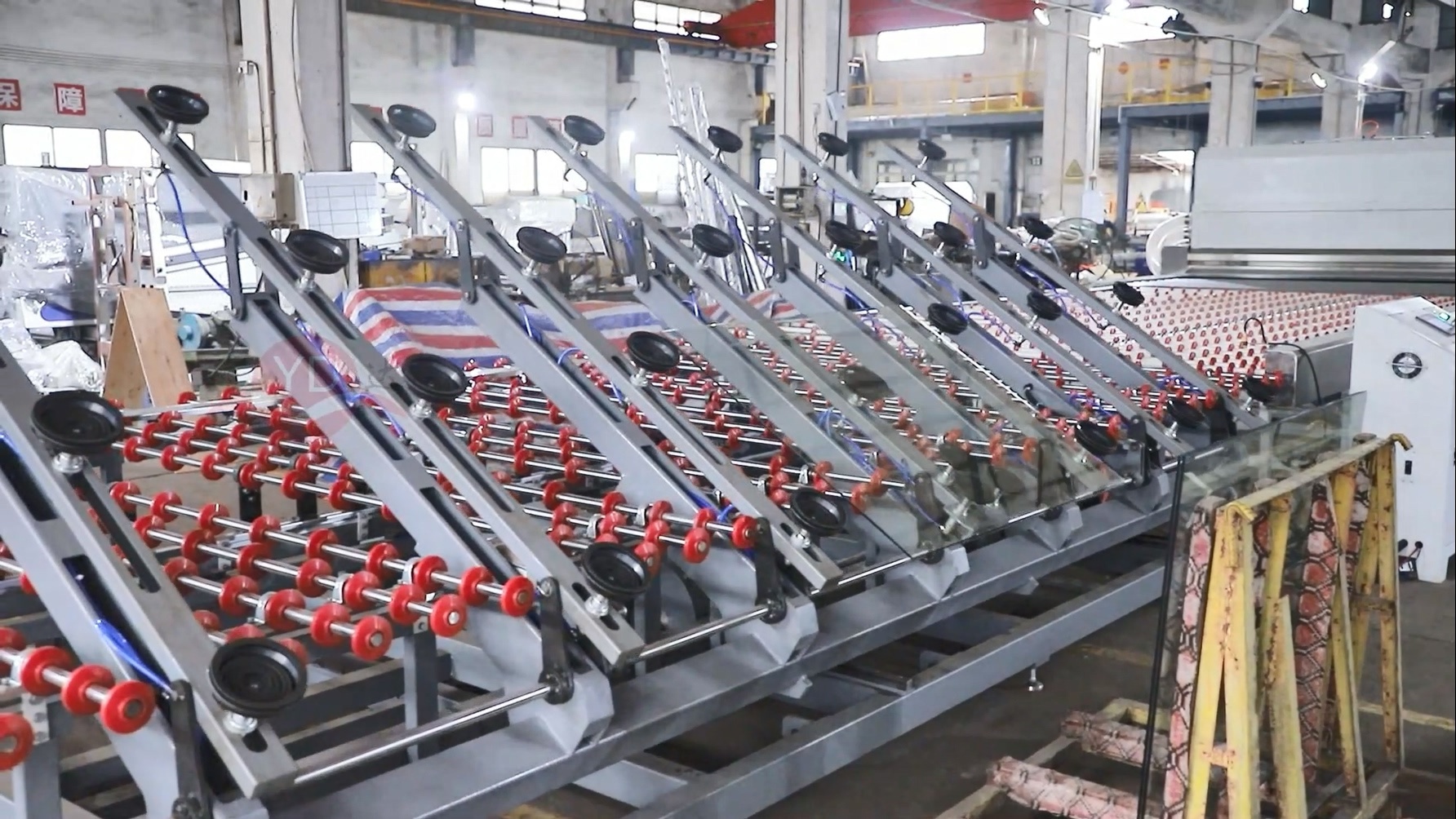

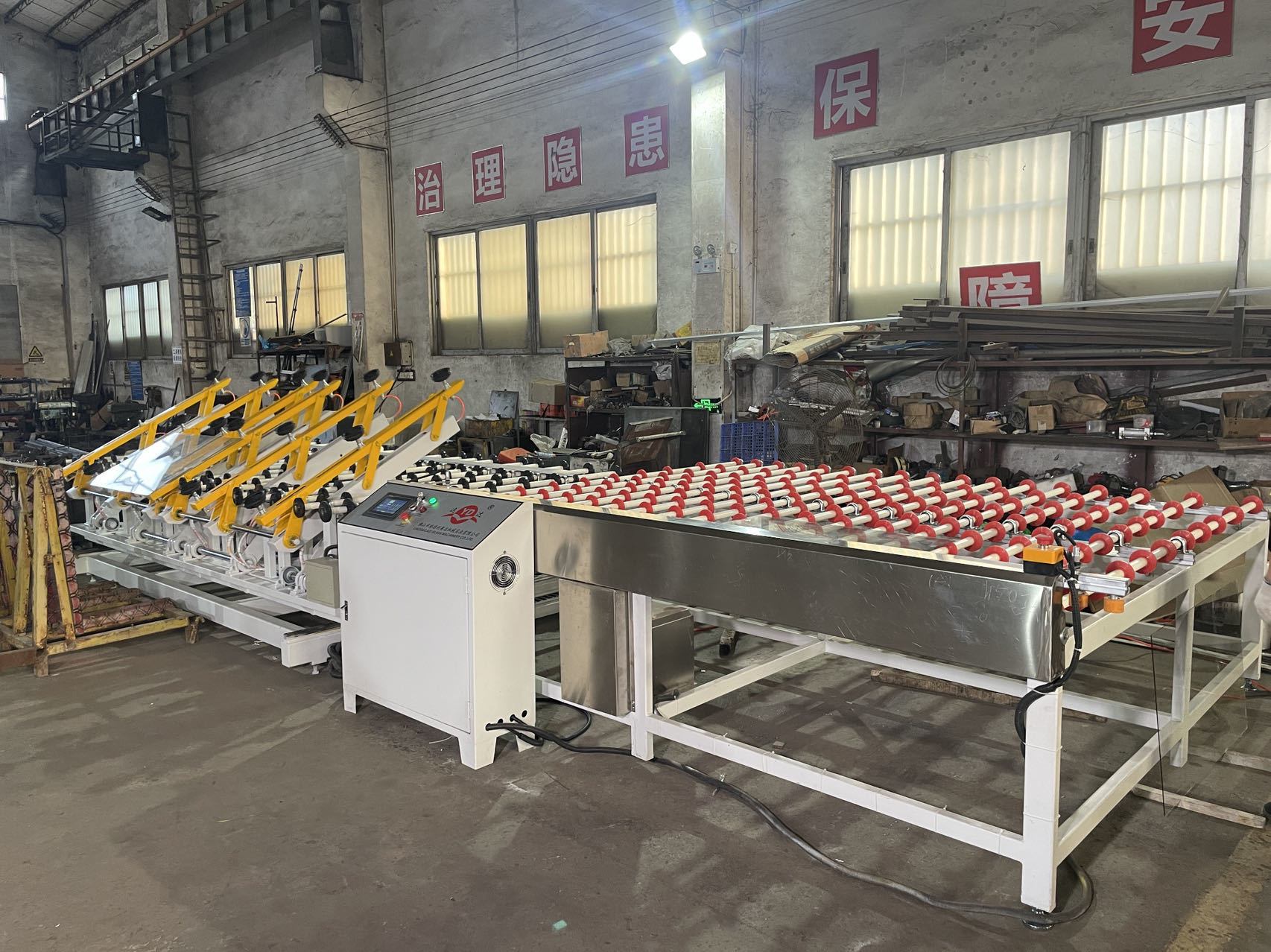

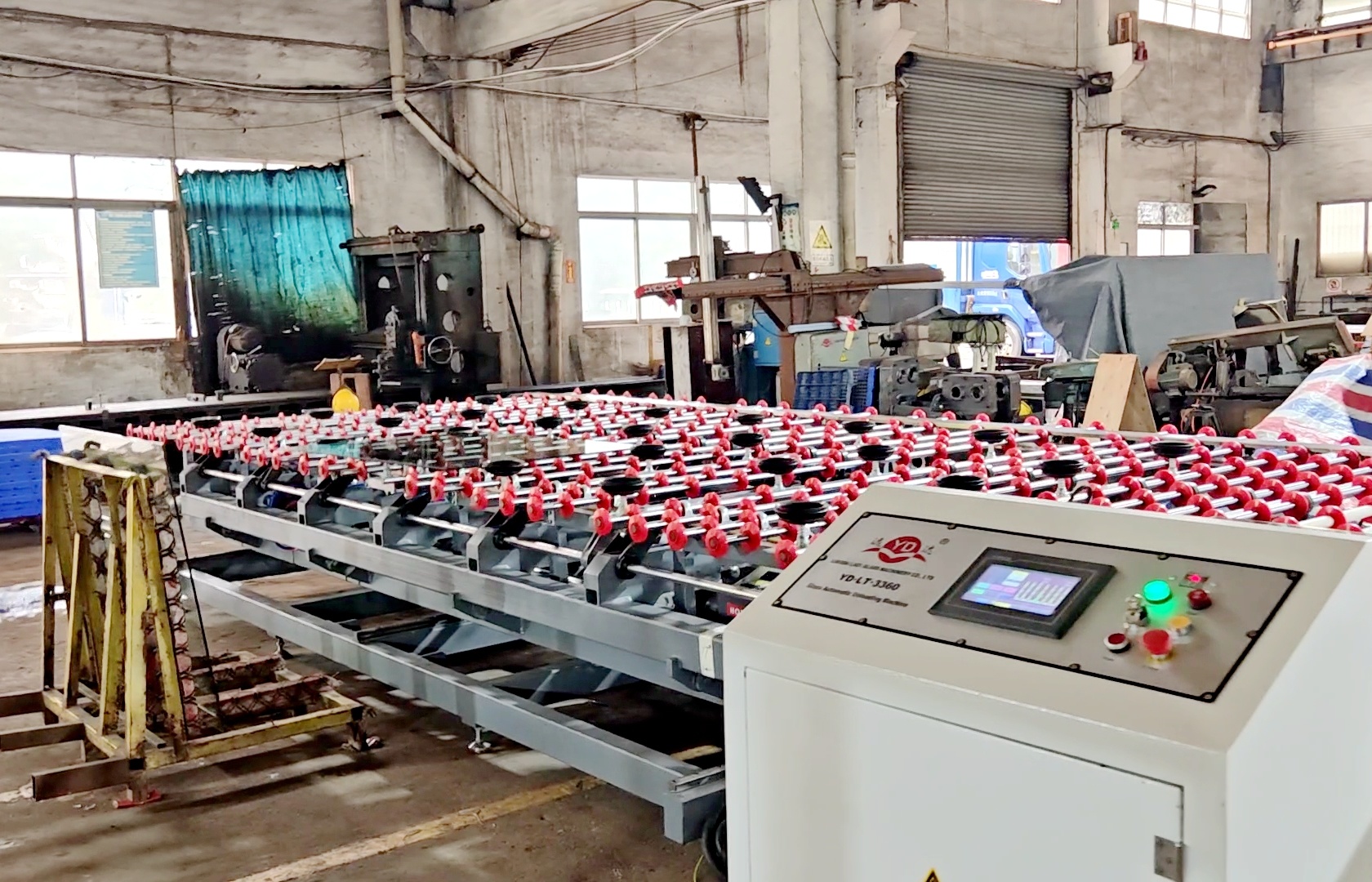

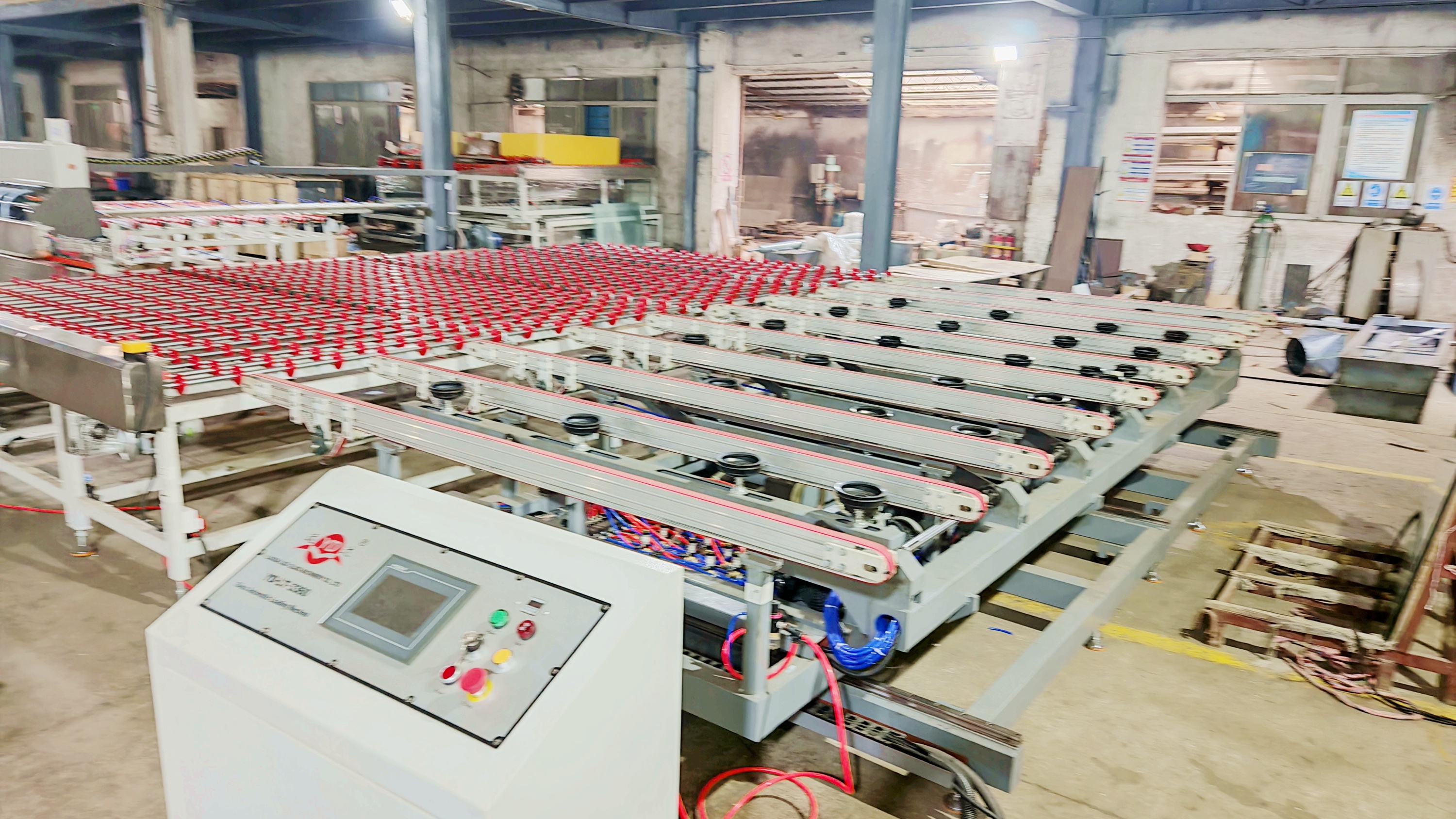

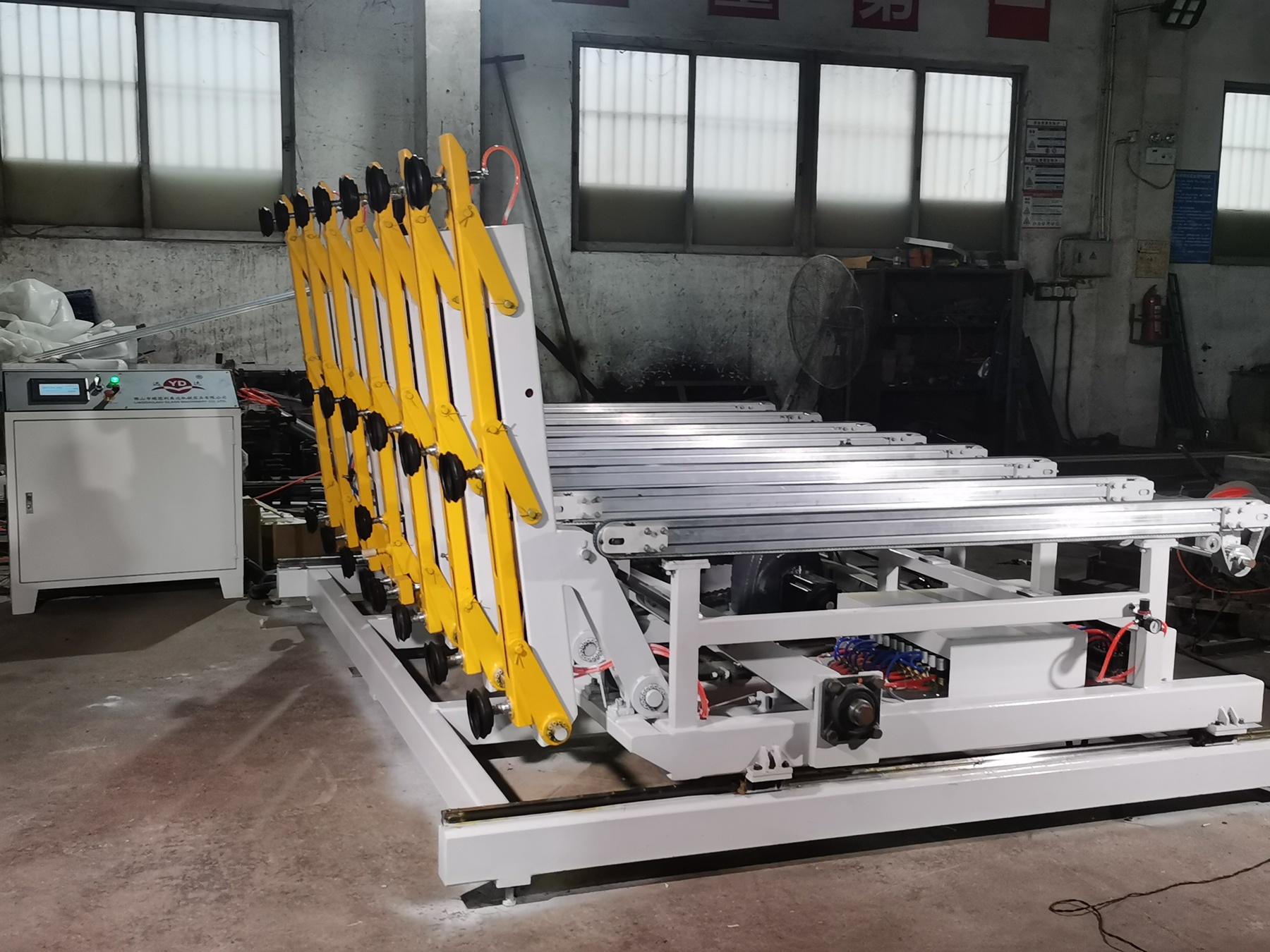

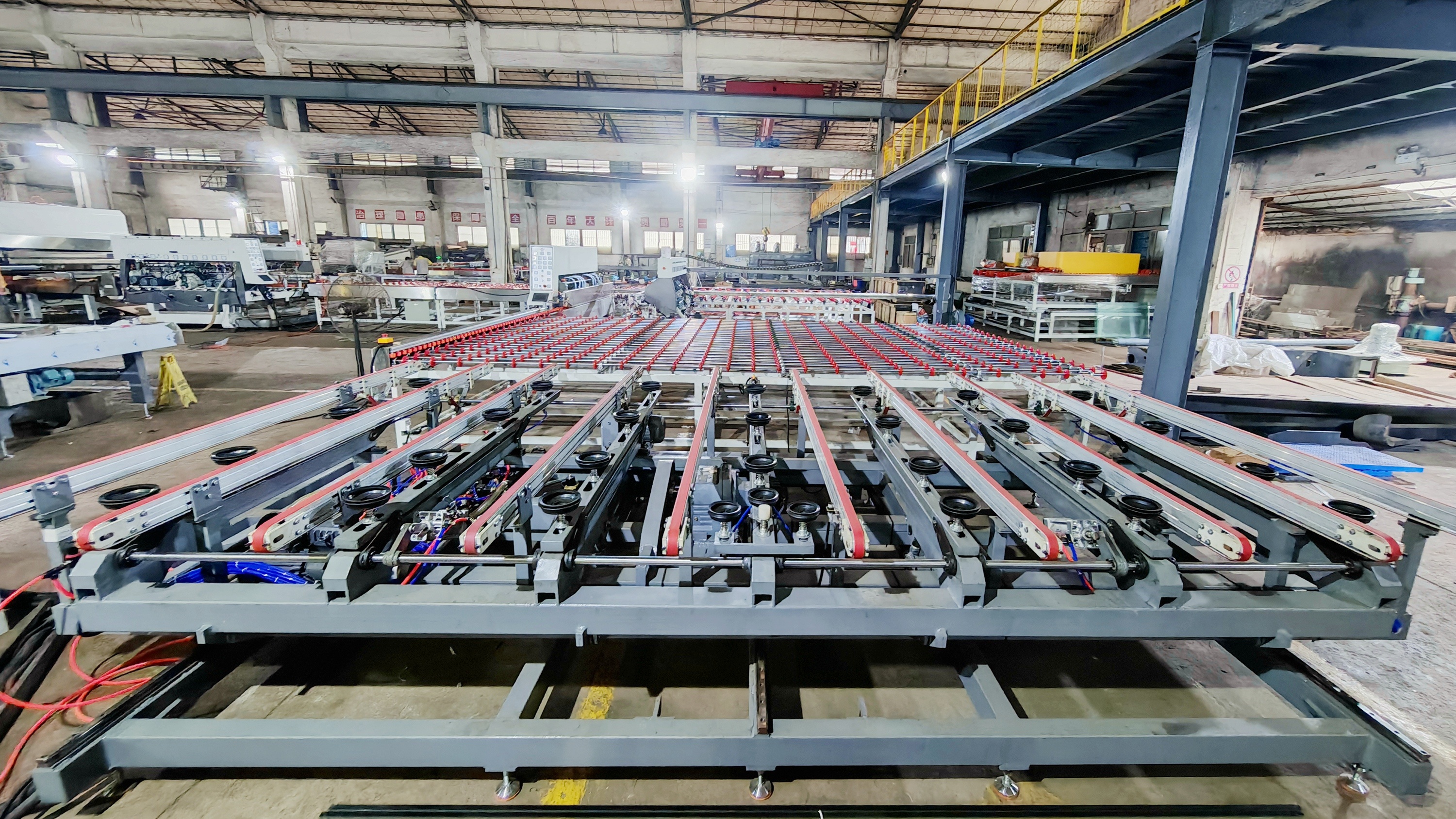

Image Display
